Brazed honeycomb panels (BP)

Special features

Configuration

Configuration

Specifications

Unit: mm
Panel height (H) 15 ~ 100
Faceplate thickness (T) 0.8 ~ 3
Core thickness (t) 0.2 ~ 0.3
Cell size (s) 10 ~ 30
Width & Length Max: 1200×3100
Honeycomb panels for bullet trains

500 Series Shinkansen

The world's first BP with a curved face were adopted for the 500 Series Shinkansen bullet trains in Japan. The world's first BP with a curved face were adopted for the 500 Series Shinkansen bullet trains in Japan.
500 Series Shinkansen

N700 Series Shinkansen
Pantograph cover

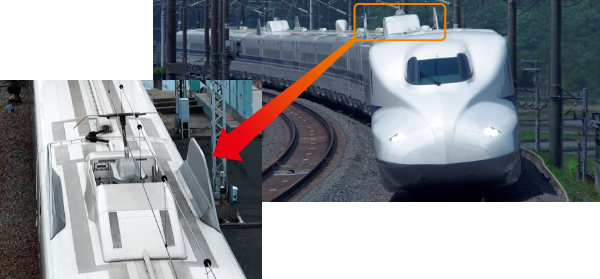

N700 Series Shinkansen Pantograph cover
BP were adopted for the pantograph covers of the N700 series Shinkansen.
