Forged aluminum products

Special features

Rich track record of production for the aerospace and high-speed train components

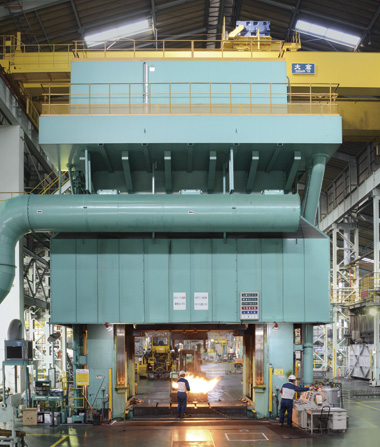

15,000-metric-ton forging press, one of the largest in Asia
Production using optimum materials for each specific use
Integrated manufacturing system for the delivery of high-quality products

Excellent properties & high-quality

Property	Alloy designation			Tensile strength (N/mm²)	Proof stress (N/mm²)	Elongation (%)	Forgeability	Machinability	Corrosion resistance
Property	AA*	UACJ	Temper	Tensile strength (N/mm²)	Proof stress (N/mm²)	Elongation (%)	Forgeability	Machinability	Corrosion resistance
High- strength	6061	6061	T6	315	275	19	◎	〇	◎
	6082	6082	T6	325	300	18	◎	〇	◎
	-	SG210	T6	400	360	18	◎	〇	◎
	2014	2014	T6	480	410	13	◎	◎	△
Abrasion resistance	4032	4032	T6	380	315	9	〇	〇	〇
	-	TF06B	T6	380	245	10	〇	〇	〇
	-	SC100	T6	440	390	8	〇	〇	〇
	-	TF12B	T6	430	380	8	〇	〇	〇
High- temperature strength		2618	T6	440	370	10	◎	◎	△
High- temperature strength		CG29	T6	520	400	14	◎	◎	△

* AA: The Aluminum Association (U.S.A.)
◎Very good 〇Good △Not good
